1 January 2014 Wolbachia Infection and Lepidoptera of Conservation Concern
C. A. Hamm, C. A. Handley, A. Pike, M. L. Forister, J. A. Fordyce, C. C. Nice
Author Affiliations +

Conservation of at-risk species requires multi-faceted and carefully-considered management approaches to be successful. For arthropods, the presence of endosymbiotic bacteria, such as Wolbachia (Rickettsiales: Rickettsiaceae), may complicate management plans and exacerbate the challenges faced by conservation managers. Wolbachia poses a substantial and underappreciated threat to the conservation of arthropods because infection may induce a number of phenotypic effects, most of which are considered deleterious to the host population. In this study, the prevalence of Wolbachia infection in lepidopteran species of conservation concern was examined. Using standard molecular techniques, 22 species of Lepidoptera were screened, of which 19 were infected with Wolbachia. This rate is comparable to that observed in insects as a whole. However, this is likely an underestimate because geographic sampling was not extensive and may not have included infected segments of the species' ranges. Wolbachia infections may be particularly problematic for conservation management plans that incorporate captive propagation or translocation. Inadvertent introduction of Wolbachia into uninfected populations or introduction of a new strain may put these populations at greater risk for extinction. Further sampling to investigate the geographic extent of Wolbachia infections within species of conservation concern and experiments designed to determine the nature of the infection phenotype(s) are necessary to manage the potential threat of infection.


Conservation managers often adopt active management strategies when confronted by complex and interconnected problems. Captive propagation and translocation programs are increasingly being incorporated into management plans to augment endangered populations or repopulate formerly occupied habitats (Crone et al. 2007). These programs present their own challenges and must be carefully designed to minimize the possibility of disease transmission and maintain genetic diversity (Snyder et al. 1996; Van Oosterhout et al. 2007). When working with arthropods of conservation concern, an additional and under- appreciated challenge arises in the form of endosymbiotic bacteria that may manipulate the reproductive biology of their hosts (Werren et al. 2008; Nice et al. 2009).

The α-proteobacteria Wolbachia (Rickettsiales: Rickettsiaceae) is a maternally inherited endosymbiont of many arthropods and is estimated to occur in up to 66% of all insects (Hilgenboecker et al. 2008). Wolbachia has been the focus of intense research efforts due to its potentially significant effects on the reproduction of its host (Werren et al. 2008; Nice et al. 2009). In short, Wolbachia manipulates its host's reproduction to facilitate its own by inducing one of four phenotypes: (1) feminization occurs when a Wolbachia infection transforms genetically male embryos into fully functional females, leading to production of progeny that are all functionally female; (2) male-killing strains eliminate all male embryos so only female progeny are produced; (3) parthenogenesisinduction occurs in species with haplo-diploid sex determination in which infected females do not need to mate and therefore produce only female progeny from unfertilized eggs; (4) cytoplasmic incompatibility (CI) prevents infected males from reproducing with uninfected females or females infected with a different strain of Wolbachia, and this is perhaps the most common phenotype (Werren et al. 2008). Should CI-infected individuals be introduced to an uninfected populations, the consequences may be dire, especially for small populations (Nice et al. 2009). These CI infections may induce a population bottleneck as its frequency spreads; if the population is not large enough to pass through this bottleneck, it may be extirpated. Wolbachia infection can be difficult to detect by demographic observations, and laboratory experiments to determine infection phenotype can be costly and time consuming (Weeks et al. 2007). The most common method for detecting Wolbachia infection utilizes the cost effective PCR, and strains may be identified using standardized protocols (Baldo et al. 2006).

Within the insects, Lepidoptera are disproportionately represented among the threatened and endangered species in the United States (28 of 62 species; U.S. Fish &Wildlife Service). Lepidoptera have also been the subject of captive rearing programs and have been discussed as candidates for translocation (Tolson 2008; Richardson et al. 2009; Landis et al. 2011). While the threat of Wolbachia to Lepidoptera of conservation concern has been demonstrated theoretically (Nice et al. 2009), it remains to be seen if Wolbachia infections are present in Lepidoptera of conservation concern. Therefore, 22 lepidopteran species from the United States, including federal and state listed threatened and endangered taxa, were surveyed for Wolbachia to document the presence of the bacterium and draw attention to the role that infection may play in recovery efforts.

Materials and Methods

A total of 296 individuals from 22 at-risk lepidopteran species were sampled (Table 1). The very nature of threatened and endangered species prohibits the use of large and random samples, thus these taxa were utilized because the material was either at immediate disposal or was kindly donated by colleagues. Genomic DNA (gDNA) was extracted from all individuals following standard methods (Brookes et al. 1997). Screening for Wolbachia in gDNA samples required two PCRs and followed the methods used by Nice et al. (2009). Primers for the ribosomal rDNA gene 16S (WSpecF and WSpecR) were used to detect Wolbachia and were run in concert with arthropod-specific 28S rDNA primers (28sF3633 and 28sR4076) to act as a positive control for each reaction. Standard positive and negative controls were run simultaneously during the Wolbachia screens. PCR products were visualized on a 1% agarose gel and scored for the presence of Wolbachia.

While the use of Wolbachia-specific PCR remains the standard method for the detection of Wolbachia (Baldo et al. 2006), certain primers may be prone to cross amplification of other bacteria (Simões et al. 2011). To minimize the likelihood of false positives, additional primers were used to amplify fructosebisphosphate aldolase (fbpA) for a subset of 16 individuals that tested positive for 16S (Baldo et al. 2006) (Table 1); fbpA amplification followed the PCR protocols outlined in Simões et al. (2011). This combination of molecular markers, 16S, and fbpA should only amplify Wolbachia and no other bacterial endosymbiont (Simões et al. 2011). A subset of individuals that tested positive for Wolbachia infections were sequenced in both directions for 16S and fbpA at the Research Technology Support Facility at Michigan State University using an ABI Prism 3730 Genetic Analyzer (Applied Biosystems, Life Technologies, The resulting sequences were combined into contigs using Geneious version 5.4 (Biomatters, and submitted for BLAST search to confirm the amplification of Wolbachia sequences (Altschul et al 1990).

To further minimize the chances of false positives for individuals that were not sequenced, a restriction digest was conducted. It was possible to predict the size of DNA fragments generated by certain restriction enzymes using the genetic sequences previously produced. The 4-cutter MseI (New England Biolabs, should have two restriction sites in 16S, both at the ends of the sequence, and generate one band of approximately 300 bp and two bands of 100 bp. The gene fbpA should contain two restriction sites for MseI, both located at the ends of the sequence, and would generate one band of approximately 350 bp and two bands of 75bp. Restriction digests were carried out under manufacturer's specifications and the resulting products were visualized on a 2% agarose gel to confirm that the actual band sizes matched predictions.


19 of the 22 species screened had at least one individual score positive for Wolbachia infection, and a subset of individuals positive for 16S were also positive for fbpA. Individuals from six species (Neonympha mitchellii mitchellii French (Nymphalidae), Speyeria idalia (Drury), S. diana (Cramer), Eupheys dukesii (Lindsey) (Hesperiidae), Hesperia ottoe Edwards, and Papaipema sciata Bird (Noctuidae)) were sequenced for 16S and fbpA, resulting in reads of ~400 bp in length. All sequences queried with a BLAST search returned hits to the appropriate Wolbachia iso late with 100% pairwise identity (E value = 0) and all sequences were associated with Wolbachia strains from supergroup 2 (Gen- Bank accession numbers KJ125429- KJ125436). Samples subjected to MseI restriction digest produced bands that matched the length predicted by restriction site mapping to known sequences for 16S and fbpA.

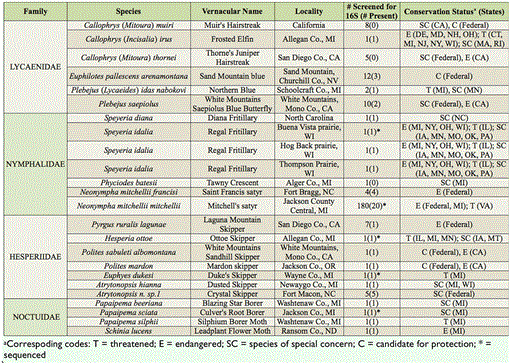

Table 1.

Results of a survey of Wolbachia infections in 244 lepidopteran individuals, representing 22 species of conservation concern. The county of collection was not available for some individuals. The total number screened is presented with the number testing positive for Wolbachia presence, which is given parentheses. All samples that were positive for 16S also tested positive for fbpA.



The presence of Wolbachia was documented in 19 lepidopteran species of conservation concern, one of which (N. m. mitchellii) is the focus of captive rearing efforts (Tolson 2008). Multiple markers were utilized, a subset of individuals was sequenced, and restriction digests were conducted on the remaining individuals to minimize the possibility of false positives. However, caution is urged when interpreting these results because a small sample size was used for many taxa and the data were not randomly sampled (though the conservation status of these taxa precludes random sampling). Thus, while these species tested positive for infection, the limited sampling reported here cannot be extended to the entire range of species. Furthermore, geographically comprehensive sampling would be required for any management plans for infected species.

Accurately determining the presence of infection and its induced phenotype requires the use of multiple methods. While necessary to detect the presence of infection, molecular genetic tools alone cannot identify the induced phenotype, because induced phenotypes are not monophyletic and the same strain might induce different phenotypes in different species (Zhou et al. 1998; Baldo et al. 2006). Molecular methods must be used in conjunction with demographic observations to determine the effects of Wolbachia. Sequencing alone cannot allay concerns regarding the effects of Wolbachia. For example, Wolbachia from the Culex pipiens / quinquefasciatus complex are identical at multiple loci, yet crosses between some strains result in cytoplasmic incompatibility (Duron et al. 2006; Atyame et al. 2011). Indeed, even utilizing the MLST protocol, in which five variable Wolbachia loci are sequenced, may or may not distinguish strains (Baldo et al. 2006). The Wolbachia from the invasive vinegar fly Drosophila suzukii is identical to wRi (the strain found in Drosophila simulans) at all five MLST loci, and yet had polymorphisms at the dnaA locus and numerous inversions; these differences were only observed after genomic sequencing was conducted (Siozios et al. 2013). Confirming infection by a CI strain requires experimental crosses between infected and uninfected individuals. In addition to Wolbachia, there are a number of other reproductive manipulators associated with insects, such as Cardinium, Rickettsia, and Spiroplasma, that should also be screened for and considered (Duron et al. 2008).

Assuming deleterious effects of an infection, there are two additional concerns when managing Wolbachia: (1) the possibility that the induced phenotype is suppressed (Hornett et al. 2006), and (2) the possibility that there are multiple strains occurring sympatrically in the same population (Hiroki et al. 2004). In the case of suppressed phenotypic effects, some populations may appear uninfected because they have been able to ameliorate the phenotypic effects of infection, though they remain infected. These populations have been able to suppress the infection phenotype, and while Wolbachia are still detectable using molecular methods, the infection phenotype is absent (Hornett et al. 2006). Transmission of Wolbachia from a suppressing population to an uninfected population may result in the expression of the induced phenotype and all of the subsequent consequences. While suppression might allow populations to escape the consequences of infection, the concealed presence of Wolbachia increases the likelihood of inadvertently introducing an infection through captive management or translocation. In the case of infection by multiple strains of Wolbachia (Reuter and Keller 2003; Hiroki et al. 2004), each strain might induce a different phenotype.

For these reasons, management programs should screen a representative subset of individuals propagated in captivity to verify if infection is present. This study may serve as a foundation for examining other at-risk arthropods, many of which have captive propagation programs. Screening of these species is necessary to determine the extent of Wolbachia infection within populations and across species. Future studies should also seek to determine the nature of the Wolbachiainduced phenotypes in these species. Information on the prevalence, geographic extent, and phenotypic effects of Wolbachia might prove critical for effective management of threatened and endangered arthropods.


The authors wish to thank David Cuthrell from the Michigan Natural Features Inventory, Nick Haddad from North Carolina State University, and Travis Longcore from the Urban Wildlands Group and Jana Johnson and Moorpark College, for providing specimens. We would also like to thank Christopher Hoving from the Michigan Department of Natural Resources and Environment, Tameka Dandridge from the United States Fish and Wildlife Service, and Barry Williams from Michigan State University for providing their expertise and comments on this project. This research was supported in part by a fellowship from the Scriber Scholars in Butterfly Conservation, a Plant Sciences Research Fellowship at Michigan State University, and a USFWS Preventing Extinction grant supporting C. A. Hamm, and funding from U.S. Fish and Wildlife Service, Carlsbad Field Office. The Texas State Research Enhancement Program provided additional support. This paper was generated from the symposium “Conservation of Lepidoptera” at the 2009 Annual Meeting of the Entomological Society of America. We wish to thank Clinton D. Pilcher, Carol L. Pilcher, and Marlin Rice of the Entomological Society of America for facilitating this symposium. The authors wish to thank Drew Davis for his helpful comments.




cytoplasmic incompatibility;


fructose-bisphosphate aldolase



SF Altschul , W Gish , W Miller , EW Myers , DJ. Lipman 1990. Basic local alignment search tool. Journal of Molecular Biology 215: 403–410. Google Scholar


C Atyame , F Delsuc , N Pasteur , M Weil , O. Duron 2011. Moecular Biology and Evolution 28: 2761–2772. Google Scholar


L Baldo , CA Desjardins , JA Russell , JK Stahlhut , JH. Werren 2010. Accelerated microevolution in an outer membrane protein (OMP) of the intracellular bacteria Wolbachia. BMC Evolutionary Biology 10: 48. Google Scholar


L Baldo , JCD Hotopp , KA Jolley , SR Bordenstein , SA Biber , RR Choudhury , C Hayashi , MCJ Maiden , H Tettelin , JH. Werren 2006. Multilocus sequence typing system for the endosymbiont Wolbachia pipientis. Applied and Environmental Microbiology 72: 7098– 7110. Google Scholar


M Brookes , Y. Graneau , P. King , O. Rose C Thomas and J.B. Mallet 1997. Genetic analysis of founder bottlenecks in the rare British butterfly Plebejus argus. Conservation Biology 11: 648–661. Google Scholar


JC Brownlie , BN Cass , M Riegler , JJ Witsenburg , I Iturbe-Ormaetxe , EA Mcgraw , SL. O'Neill 2009. Evidence for metabolic provisioning by a common invertebrate endosymbiont, Wolbachia pipientis, during periods of nutritional stress. PLOS Pathogens 5: e1000368. Google Scholar


E Crone , D Pickering , C. Schultz 2007. Can captive rearing promote recovery of endangered butterflies? An assessment in the face of uncertainty. Biological Conservation 139: 103–112. Google Scholar


O Duron , C Bernard , S Unal , A Berthomieu , C Berticat , M. Weill 2006. Tracking factors modulating cytoplasmic incompatabilities in the mosquito Culex pipiens. Molecular Ecology 15: 2061–3071. Google Scholar


O Duron , D Bouchon , S Boutin , L Bellamy , L Zhou , J Engelstäder , GD. Hurst 2008. The diversity of reproductive parasites among arthropods: Wolbachia do not walk alone. BMC Biology 6:27. Google Scholar


K Hilgenboecker , P Hammerstein , P Schlattmann , A Telschow , JH. Werren 2008. How many species are infected with Wolbachia?--A statistical analysis of current data. FEMS Microbiology Letters 281: 215– 220. Google Scholar


M Hiroki , Y Tagami , K Miura , Y. Kato 2004. Multiple infection with Wolbachia inducing different reproductive manipulations in the butterfly Eurema hecabe. Proceedings Of The Royal Society B-Biological Sciences 271: 1751–1755. Google Scholar


EA Hornett , S Charlat , AMR Duplouy , N Davies , GK Roderick , N Wedell , GDD. Hurst 2006. Evolution of male-killer suppression in a natural population. PLOS Biology 4: e283. Google Scholar


DA Landis , AK Fiedler , CA Hamm , DL Cuthrell , EH Schools , DR Pearsall , ME Herbert , PJ. Doran 2011. Insect conservation in Michigan prairie fen: addressing the challenge of global change. Journal of Insect Conservation 16: 131–142. Google Scholar


CC Nice , Z Gompert , ML Forister , JA. Fordyce 2009. An unseen foe in arthropod conservation efforts: The case of Wolbachia infections in the Karner blue butterfly. Biological Conservation 142: 3137–3146. Google Scholar


M Reuter , L. Keller 2003. High levels of multiple Wolbachia infection and recombination in the ant Formica exsecta. Molecular Biology And Evolution 20: 748– 753. Google Scholar


DM Richardson , JJ Hellmann , JS Mclachlan , DF Sax , MW Schwartz , P Gonzalez , EJ Brennan , A Camacho , TL Root , OE Sala , SH Schneider , DM Ashe , JR Clark , R Early , JR Etterson , ED Fielder , JL Gill , BA Minteer , S Polasky , HD Safford , AR Thompson , M. Vellend 2009. Multidimensional evaluation of managed relocation. Proceedings Of The National Academy Of Sciences USA 106: 9721–9724. Google Scholar


S Siozios , A Cestaro , R Kaur , I Pertot , O Rota-Stabelli , G. Anfora 2013. Draft genome of the Wolbachia endosymbiont of Drosophila suzukii. Genome Announcements 1: e00032– 13. Google Scholar


P Simões , G Mialdea , D Reiss , MF Sagot , S. Charlat 2011. Wolbachia detection: an assessment of standard PCR Protocols. Molecular Ecology Resources 11: 567–572. Google Scholar


NFR Snyder , SR Derrickson , SR Beissinger , JW Wiley , TB Smith , WD Toone , B. Miller 1996. Limitations of Captive Breeding in Endangered Species Recovery. Conservation Biology 10: 338–348. Google Scholar


JK Stahlhut , CA Desjardins , ME Clark , L Baldo , JA Russell , JH Werren , J. Jaenike 2010. The mushroom habitat as an ecological arena for global exchange of Wolbachia. Molecular Ecology 19: 1940–1952. Google Scholar


P. Tolson 2008. Rearing Mitchell's satyr at the Toldeo Zoo - a first step towards eventual re-introduction in secure habitats. News of the Lepidopterists' Society 50: 42–43. Google Scholar


U.S. Fish & Wildlife Service. Environmental Conservation Online System. Available online:  Google Scholar


C Van Oosterhout , AM Smith , B Hänfling , IW Ramnarine , RS Mohammed , J. Cable 2007. The guppy as a conservation model: implications of parasitism and inbreeding for reintroduction success. Conservation Biology 21: 1573–1583. Google Scholar


AR Weeks , M Turelli , WR Harcombe , KT Reynolds , AA. Hoffmann 2007. From parasite to mutualist: rapid evolution of Wolbachia in natural populations of Drosophila. PLOS Biology 5: e114. Google Scholar


JH Werren , L Baldo , ME. Clark 2008. Wolbachia: master manipulators of invertebrate biology. Nature Reviews Microbiology 6: 741–751. Google Scholar


W Zhou , F Rousset , S. O'Neill 1998. Phylogeny and PCR-based classification of Wolbachia strains using wsp gene sequences. Proceedings Of The Royal Society Of London Series B-Biological Sciences 265: 509–515. Google Scholar
This is an open access paper. We use the Creative Commons Attribution 3.0 license that permits unrestricted use, provided that the paper is properly attributed.
C. A. Hamm, C. A. Handley, A. Pike, M. L. Forister, J. A. Fordyce, and C. C. Nice "Wolbachia Infection and Lepidoptera of Conservation Concern," Journal of Insect Science 14(6), 1-8, (1 January 2014).
Received: 29 October 2012; Accepted: 31 July 2013; Published: 1 January 2014
