1 February 2004 Ancient Phylogenetic Separation between Pacific and Atlantic Cephalochordates as Revealed by Mitochondrial Genome Analysis
Author Affiliations +

The subphylum Cephalochordata (lancelets) is a relatively small taxonomic group in contrast to the subphyla Urochordata and Vertebrata. As an initial step to determine whether lancelets exhibit small genetic divergence in keeping with their conservative body organization or large genetic variation, four Branchiostoma species from the Pacific (B. belcheri and B. malayanum) and Atlantic (B. floridae and B. lanceolatum) Oceans were genetically compared using partial mitochondrial DNA sequences of the cyto-chrome oxidase c subunit I (COI) and 16S ribosomal RNA (16S rRNA) genes. In both genes, large genetic differences were revealed between the Pacific and Atlantic species, as well as within the former. Two maximum-likelihood trees from the COI and 16S rRNA genes showed that the Pacific and Atlantic lancelets were reciprocally clustered into different clades. Furthermore, both gene trees consistently exhibited deep phylogenetic separation between the two oceans. The estimated divergence time suggested that differentiation may have followed the migration of ancestral lancelets from the Pacific to the Atlantic Oceans via the Tethys Sea.


The subphylum Cephalochordata (lancelets), a benthic marine invertebrate taxon is believed to be the sister group of vertebrates (Vertebrata). Accordingly, it has been well studied for clues to the origin of vertebrates, especially from the points of view of developmental biology and physiology (Gee, 1996; Hall, 1998). However, cephalochordates have remained little studied in terms of evolutionary biology, including phylogeny and population genetics. The main reason for such paucity of evolutionary studies may be the occurrence in Cephalochordata of only ca. 29 known living species, all exhibiting poor morphological variation (Poss and Boschung, 1996), in contrast to the great morphological and species diversity of the Urochordata and Vertebrata (ca. 2,500 species in the former and ca. 45,000 species in the latter) (based on Table 6 in Minelli, 1993). The recent progress of molecular biological techniques has made the exploration of genetic diversities of organisms more straight forward, the genetic analyses aided by modern techniques being effective particularly in evolutionary studies of morphologically similar organisms. Indeed, comparative genetic studies of congeneric animals using molecular markers have revealed large genetic differentiation (e.g. Glenn and Avise, 1998), suggesting that their general body organization has remained stable for a long time following phylogenetic splitting. Lancelets have persisted for a long period of time as indicated by fossil records referred to the cephalochordates [for example, Pikaia and Cathaymyrus from the Lower Cambrian (Shu et al., 1996)]. Therefore, although the animals have shown few morphological changes, it is possible that they have accumulated significant genetic changes at molecular level, should the extant species have had long histories. However, previous molecular studies of two Atlantic species of Branchiostoma floridae Hubbs, 1922 and B. lanceolatum (Pallas, 1774) showed small genetic differences in their complete mitochondrial DNA sequences (Boore et al., 1999; Spruyt et al., 1998). The question as to whether or not such small morphological and genetic differentiation in the Atlantic lancelets implies recent diversification of all extant species can be examined by a genetic survey extended to more species.

In the present study, two Branchiostoma species from the Pacific Ocean were genetically surveyed by mitochondrial DNA sequences to examine the extent of their genetic differentiation from the two Atlantic species mentioned above, and their divergence time and probable evolutionary history were discussed.



The four Branchiostoma species considered here are B. belcheri (Gray, 1847), B. malayanum Webb, 1956, B. floridae and B. lanceolatum. Samples of B. malayanum and B. belcheri were collected from the West Pacific (Fig. 1), the former from Ko Khang Kao Island, Gulf of Thailand, in November 1999 and the latter from Awajishima Island, Central Japan in July 1999. Epigonichthys lucayanus (Andrews, 1893) was sampled from Kuroshima Island, SW Japan, in September 2000 and used as an outgroup in the present phylogenetic analysis. All specimens were fixed and preserved in 70% or 99.5% ethanol until analysis.

Fig. 1

Sampling localities of lancelets. Bb, Bm, Bf, Bl and El after locality names indicate Brachiostoma belcheri, B. malayanum, B. floridae, B. lanceolatum, and Epigonichthys lucayanus, respectively. Sampling localities for B. floridae and B. lanceolatum are approximations following Boore et al. (1999) and Spruyt et al. (1998), respectively.


Data for B. floridae collected from Florida, USA and B. lanceolatum from Roscoff, France were obtained from the DNA Data Bank of Japan, accession numbers for the species being  AF098298 (Boore et al., 1999) and  Y16474 (Spruyt et al., 1998), respectively.

DNA preparation, PCR amplification and sequencing

Tissue from the posterior part of each specimen was digested for twelve hours with proteinase K (10 mg/ml) in a lysis buffer [10 mM Tris-HCl, pH 8.0; 2 mM EDTA; 1% SDS (w/v)]. Total DNA of each lancelet was isolated from the digested tissue solution using a standard phenol-chloroform method and ethanol precipitation (Sambrook and Russell, 2001). The isolated DNA was resuspended with TE buffer (10 mM Tris-HCl, pH 8.0; 2 mM EDTA).

The middle to posterior part of the 16S ribosomal RNA (16S rRNA) gene and two parts of the cytochrome oxidase c subunit I (abbreviated as COI) gene on the lancelet mitochondrial genome were amplified with the following primers: L2188 (5′-AGTGGGCCTAAAAGCAGCCA-3′) and H2716i (5′-AAGTTTTATAGGGTCTTATCGTC-3′; Kitaura et al., 1998) for ca. 450 bp of the middle part of the 16S rRNA gene; L2510i (5′-CGCCTGTTTAACAAAAACAT-3′; Palumbi et al., 1991) and H 3058 (5′-TCCGGTCTGAACTCAGATCACGTA-3′) for ca. 550 bp of the posterior part of the 16S rRNA gene; LCO1490 (5′-GGTCAACAAATCATAAAGATATTGG-3′; Folmer et al., 1994) and H6609 (5′-ACTTCAGGGTGACCAAAAAAYCA-3′; Shikatani and Nishida, unpublished) for 558 bp of the anterior part of the COI gene; L6631 (5′-TGRTTTTTTGGTCACCCTGAAGT-3′; Shikatani and Nishida, unpublished) and H7227 (5′-CATGTAGTGTATGCATCAGGGTARTC-3′; Nishida et al., 1998) for 414 bp of the posterior part of the COI gene. The polymerase chain reaction (PCR) was carried out in a 15 μl volume containing TaKaRa Ex Taq™ buffer (2 mM Tris-HCl, pH 8.0; 2 mM MgCl2; 10 mM KCl; 0.01 mM EDTA; 0.1 mM DTT; 0.05% Tween® 20; 0.05% Nonidet P-40®; 5% glycerol), 0.5 units TaKaRa Ex Taq™ polymerase, 2.5 mM each dNTP mixture, 0.5 μM each primer and 10–20 ng template DNA on a thermal cycler (GeneAmp® PCR System 9700, Applied Biosystems) for 30–35 cycles, with the following thermal profile: preheating at 95°C for 2 min, denaturation at 95°C for 15 seconds, annealing at 45°C for 15 seconds and extension at 72°C for 30 seconds.

Before sequencing the two genes, the double-stranded DNA obtained through PCR was purified with the usb™ PCR Product Pre-Sequencing Kit (USB) composed of exonuclease I and shrimp alkaline phosphatase. Direct sequencing of the purified double-stranded DNA using the BigDye™ Terminator Cycle Sequencing FS Ready Reaction Kit v.2.0 (Applied Biosystems) was performed on an ABI PRISM® 377 DNA Sequencer (Applied Biosystems) or a 310 Genetic Analyzer (Applied Biosystems). DNA sequence data newly determined for B. belcheri, B. malayanum and E. lucayanus are available from DDBJ/EMBL/GenBank (accession numbers shown in Appendix 1).

Data analysis

Partial sequences of lancelet 16S rRNA and COI genes from the five species (including the outgroup) were primarily aligned with Clustal X (Thompson et al., 1997), and then inspected and corrected by eye. Some parts in the aligned sequences of the 16S rRNA gene, totaling 36 sites, were completely excluded in all the present analyses because of their alignment ambiguity (Appendix 2). On the other hand, sequences from the COI gene were unambiguously aligned, allowing all sites to be used in the analyses of that gene. The public domain MEGA ver. 2.1 program (Kumar et al., 2001; available at was used for counting the numbers of transitions and transversions, and for calculating pairwise genetic distances between the lancelets using Kimura's (1980) two-parameter model. Taking gap sites in the 16S rRNA gene into consideration, evolutionary distances in the gene were estimated with pairwise-deletion option of the MEGA program. Phylogenetic relationships among the five lancelets, based on the DNA sequences of the two genes, were respectively inferred with PAUP* 4.0b10 (Swofford, 2001), using maximum-likelihood (abbreviated as ML) method (Felsenstein, 1981) under the HKY 85 model (Hasegawa et al., 1985). An exhaustive search was performed to find ML trees for the respective genes. The ratio of transition to transversion (Ts/Tv) was estimated with PAUP* simultaneously with the search for the ML trees. The robustness of each branching point in the gene trees was examined using the bootstrap method (Felsenstein, 1985) with 10,000 replications. In the phylogenetic analysis for the 16S rRNA gene, open sites were treated as missing data.


Sequence divergence among the Pacific and Atlantic lancelets

Table 1 shows large sequence differences between the Pacific and Atlantic species in both the 16S rRNA and COI genes [net difference in the former represented around 150 sites (19.2–20.6%), in the latter around 180 sites (17.9– 19.4%)]. The averaged genetic distance between the Pacific and Atlantic species was 0.200 in the 16S rRNA gene and 0.245 in the COI gene (Table 2). The two Pacific lancelets differed significantly from each other in both genes, in contrast to close similarity between the two Atlantic species.

Table 1

Sequence differences (transitions / transversions) between pairs of Branchiostoma species and Epigonichthys lucayanus (outgroup) in 773 bp of the 16S rRNA gene (above diagonal) and 972 bp of the COI gene (below diagonal). Proportions of transitional and transversional changes in both genes shown in parentheses.


Table 2

Pairwise genetic distances in Branchiostoma species and Epigonichthys lucayanus determined from the 16S rRNA (above diagonal) and COI (lower diagonal) genes using Kimura's (1980) two-parameter model, calculated with MEGA ver. 2.1 (Kumar et al., 2001). Ts/Tv values, estimated with PAUP*, for the former and latter genes were 1.30 and 1.70, respectively.


Phylogenetic relationships

Two ML trees estimated from the 16S rRNA and COI genes showed that the Pacific and Atlantic species pairs were reciprocally clustered into two different clades, supported by high bootstrap probabilities (Fig. 2). Furthermore, the depth of phylogenetic separation between the Pacific and Atlantic lancelets proved to be notable in both gene trees. Contrasting branching patterns in the two gene trees were found between the groups of Pacific and Atlantic species, the phylogenetic splitting between the former being significantly deeper than that between the latter. The inter-specific relationship seen in the ML trees was consistent with those found in maximum-parsimony and neighbor-joining trees constructed for the two genes (data not shown).

Fig. 2

Maximum-likelihood trees of the 16S rRNA (A) and COI (B) genes based on HYK85 model (Hasegawa et al., 1985) in the genes (estimated parameters for 16S gene: -Ln likelihood=2350, Ts/Tv=1.30; for COI gene: -Ln likelihood=3110, Ts/Tv=1.70). Values on branches of gene trees indicate bootstrap probability with 10,000 replications. Horizontal bar under each tree shows 0.1 substitutions per site.



Phylogenetic relationships among the examined lancelets

The present survey appears to be the first providing comparable genetic data, thus allowing an estimation of phylogenetic relationships. The data showed the two Pacific species, B. belcheri and B. malayanum, to be significantly differentiated from the two Atlantic B. floridae and B. lanceolatum. At present, 6 and 14 species, respectively, are known to inhabit the Pacific and Atlantic Oceans (Poss and Boschung, 1996). Although it is still uncertain if the other extant lancelets conform invariably to the same Pacific and Atlantic lineages, the present result and our preliminary analysis including another Atlantic Branchiostoma species (Nohara et al., unpublished data) suggest a possibility that Pacific and Atlantic Branchiostoma have diversified independently, following their phylogenetic separation.

Divergence times have been estimated from molecular data from many organisms, especially vertebrates (e.g. Avise, 2000). Whereas the divergence time of lancelets is difficult to estimate directly from fossil data because of the paucity of lancelet fossils, an alternative approach using the “molecular clock” of other animals may help an estimation, in spite of the variability of evolutionary rates among animals. The molecular clock determined from the COI and cytochrome b genes of shark mtDNA, estimated by Andrew et al. (1992), appears to be suitable for estimating the divergence time of lancelets since sharks can be regarded as the closest relatives of lancelets among all the animals that have been studied for an evolutionary rate of mtDNA. The evolutionary rate in shark mtDNA may give a reasonable estimate of divergence time, judging from its consistency with those in perciform (Cantatore et al., 1994) and anguilli-form (Lin et al., 2001) fish mtDNA. According to Andrew et al. (1992) estimation, the divergence times within the Pacific species and between the Pacific and Atlantic lance-lets were estimated at 97.7 million years ago (abbreviated as Mya) and 112 Mya, respectively (Table 3). These divergence-time estimates may be reasonable, indicating differentiation of the Atlantic ancestral lancelets from the ancestors inhabiting the ancient Pacific as having occurred after the beginning of the formation of the Atlantic, probably following migration from the ancient Pacific to the developing ancient Atlantic via the Tethys seaway. Closure of the Tethyan corridor may have played a crucial part in deep phylogenetic splitting between the Indo-Pacific and Atlantic relatives in some marine organisms as well as the Atlanctic lancelets, as suggested by the previous molecular phylogenetic studies for loliginid squids (Anderson, 2000) and eels (Aoyama et al., 2001).

Table 3

Divergence times (T) between Branchiostoma species estimated from Andrew et al. (1992) molecular clock for cyto-chrome c oxidase subunit I and cytochrome b genes in shark mtDNA (7.1×10−10 transversions/site·year). K indicates corrected proportion of transversions between compared sequences: K=0.5·log<sub>e</sub>(1/(1–2Q)), where Q is an observed proportion of transversions. Estimate between Pacific and Atlantic species is the averaged value for four pairs of the species.


On the other hand, the present results also suggest very recent speciation of the two Atlantic lancelets, although the divergence time could not be calculated owing to the lack of transversions in the COI gene. Possible recent genetic differentiation in species on European and North American sides of the Atlantic Ocean has been demonstrated in fishes including mackerel, Scomber scombrus (Scoles et al., 1998), bluefish, Pomatomus saltatrix (Goodbred and Graves, 1996) and capelin, Mallotus villosus (Dodson et al., 1991). These findings suggest that a recent geographic event (e.g. glacial period) has played some role in bringing about such genetic differentiation.

Disparity between morphological similarity and molecular phylogeny

From the morphological point of view, B. belcheri appears to be more closely related to the Atlantic species than to B. malayanum (Table 4). For example, mean myotomes in B. belcheri, B. floridae, B. lanceolatum and B. malayanum number 62–67, 59–60, 58–63 and 52, respectively. However, the phylogenetic affinities indicated by the 16S rRNA and COI gene trees were not coincident with morphological similarity among the Branchiostoma species examined because of the apparent reciprocal monophyly of the Pacific and Atlantic species. Clearly, much remains to be learned in the pattern and process of morphological changes in the lancelets.

Table 4

Variation of mean numbers of total myotomes, dorsal fin-chambers and preanal fin-chambers in previously studies for the four species of Branchiostoma, based on Table 2 of Poss and Bos-chung (1996). Mean ranges in B. malayanum are not given due to poor data.



We appreciate the assistance of Dr. Yoshio Ojima, Japan Marine Science College, and Mr. Nopadon Kakhai, Kung Krabaen Bay Royal Development Study Centre, Thailand, for collecting specimens of lancelets. This study was supported in part by Grant-in-Aids from the Ministry of Education, Science, Sports and Culture of Japan to TN (#11640694 and #13440253).


  1. F. E. Anderson 2000. Phylogeny and historical biogeography of the loliginid squids (Mollusca: Cephalopoda) based on mitochondrial DNA sequence data. Mol Phylogenet Evol 15:191–214. Google Scholar

  2. P. M. Andrew, G. J. P. Naylor, and S. R. Palumbi . 1992. Rates of mitochondrial DNA evolution in sharks are slow compared with mammals. Nature 357:153–155. Google Scholar

  3. A. Andrews 1893. An undescribed acraniate: Asymmetron lucayanum. Studies from the Biological Laboratory. Johns Hopkins University 5:213–247. Google Scholar

  4. J. Aoyama, M. Nishida, and K. Tsukamoto . 2001. Molecular phylogeny and evolution of the freshwater eel, genus Anguilla. Mol Phylogenet Evol 20:450–459. Google Scholar

  5. J. C. Avise 2000. Phylogeography: The history and formation of species. Harvard University Press. Cambridge. Google Scholar

  6. J. L. Boore, L. L. Daehler, and W. Brown . 1999. Complete sequence, gene arrangement, and genetic code of mitochondrial DNA of the Cephalochordata Branchiostoma floridae (Amphioxus). Mol Biol Evol 16:410–418. Google Scholar

  7. P. Cantatore, M. Roberti, G. Pesole, A. Ludovico, F. Milella, M. N. Gadaleta, and C. Saccone . 1994. Evolutionary analysis of cytochrome b sequences in some Perciformes: evidence for a slower rate of evolution than in mammals. J Mol Evol 39:589–597. Google Scholar

  8. J. J. Dodson, J. E. Carscadden, L. Bernatchez, and F. Colombani . 1991. Relationship between spawning mode and phylogeographic structure in mitochondrial DNA of North Atlantic capelin Mallotus villosus. Mar Ecol Prog Ser 76:103–113. Google Scholar

  9. J. Felsenstein 1981. Evolutionary trees from DNA sequences: a maximum likelihood approach. J Mol Evol 17:368–376. Google Scholar

  10. J. Felsenstein 1985. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 39:783–791. Google Scholar

  11. O. Folmer, M. Black, W. Hoen, R. Litz, and R. Vrijenhoek . 1994. DNA primers for amplification of mitochondrial cytochrome oxidase subunit 1 from diverse metazoan invertebrate. Mol Biol Biotechnol 3:294–299. Google Scholar

  12. H. Gee 1996. Before the Backbone: Views on the origin of the vertebrates. Chapman & Hall. London. Google Scholar

  13. C. Glenn and J. C. Avise . 1998. A comparative summary of genetic distances in the vertebrates from mitochondrial cytochrome b gene. Mol Biol Evol 15:1481–1490. Google Scholar

  14. C. O. Goodbred and J. E. Graves . 1996. Genetic relationship among geographically isolated populations of bluefish (Pomatomus saltatrix). Mar Freshwater Res 47:347–355. Google Scholar

  15. B. K. Hall 1998. Evolutionary developmental biology. 2nd ed. Chapman & Hall. London. Google Scholar

  16. M. Hasegawa, H. Kishino, and T. Yano . 1985. Dating the human-ape split by a molecular clock of mitochondrial DNA. J Mol Evol 22:160–174. Google Scholar

  17. C. Hubbs 1922. A list of lancelets of the world with diagnoses of five new species of Branchiostoma. Occas Pap Mus Zool Univ Michigan 105:1–16. Google Scholar

  18. M. Kimura 1980. A simple method for estimating evolutionary rate of base substitution through comparative studies of nucleotide sequences. J Mol Evol 16:111–120. Google Scholar

  19. J. Kitaura, G. Yamamoto, and M. Nishida . 1998. Genetic variation in populations of diamond shaped squid Thysanoteuthis rhombus as examined by mitochondrial sequence analysis. Fish Sci 64:538–542. Google Scholar

  20. S. Kumar, K. Tamura, I. B. Jakobsen, and M. Nei . 2001. MEGA2: Molecular Evolutionary Genetics Analysis software. Bioinformatics 17:1244–1245. Google Scholar

  21. Y-S. Lin, Y-P. Poh, and C-S. Tzeng . 2001. A phylogeny of freshwater eels inferred from mitochondrial genes. Mol Phylogenet Evol 20:252–261. Google Scholar

  22. A. Minelli 1993. Biological Systematics. Chapman & Hall. London. Google Scholar

  23. M. Nishida, T. Ohkawa, and Y. Iwata . 1998. Methods of analysis of genetic population structure with mitochondrial DNA markers. Fish Genet Breed Sci 26:81–100. in Japanese. Google Scholar

  24. S. Palumbi, A. Martin, S. Romano, W. O. McMillan, L. Stice, and G. Grabowski . 1991. The simple fool's guide to PCR. Dept of Zool and Kewalo Mar Lab, Univ of Hawaii. Honolulu. Google Scholar

  25. S. G. Poss and H. T. Boschung . 1996. Lancelets (Cephalochordata: Bran-chiostomidae): How many species are valid. Isr J Zool 42:S13–S66. Google Scholar

  26. J. Sambrook and D. W. Russell . 2001. Preparation and analysis of eukaryotic genomic DNA. In. “Molecular Cloning Vol 1. 3rd ed”. Cold Harbor Laboratory Press. New York. pp. 6.4–6.11. Google Scholar

  27. D. R. Scoles, B. Collette, and J. E. Graves . 1998. Global phylogeography of mackerels of the genus Scomber. Fish Bull 96:823–842. Google Scholar

  28. D. G. Shu, S. C. Morris, and X-L. Zhang . 1996. A Pikaia-like chordate from the Lower Cambrian of China. Nature 384:157–158. Google Scholar

  29. D. L. Swofford 2001. PAUP*: Phylogenetic Analysis Using Parsimony (*and Other Methods) Version 4. Sinauer Associates. Sunderland, Massachusetts. Google Scholar

  30. N. Spruyt, C. Delarbre, G. Gachelin, and V. Laudet . 1998. Complete sequence of the amphioxus (Branchiostoma lanceolatum) mitochondrial genome: relation to vertebrates. Nucleic Acids Res 26:3279–3285. Google Scholar

  31. J. D. Thompson, T. Gibson, F. Plewniak, F. Jeanmougin, and D. G. Higgins . 1997. The Clustal X windows interface: flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res 24:4876–4882. Google Scholar

  32. J. E. Webb 1956. A note on the lancelets of Singapore, with a description of a new species of Branchiostoma. Proc Zool Soc Lond 127:119–123. Google Scholar


Appendix 1

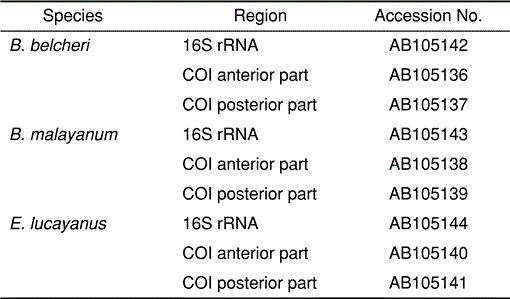

Accession numbers for sequences determined in the present study.


Appendix 2

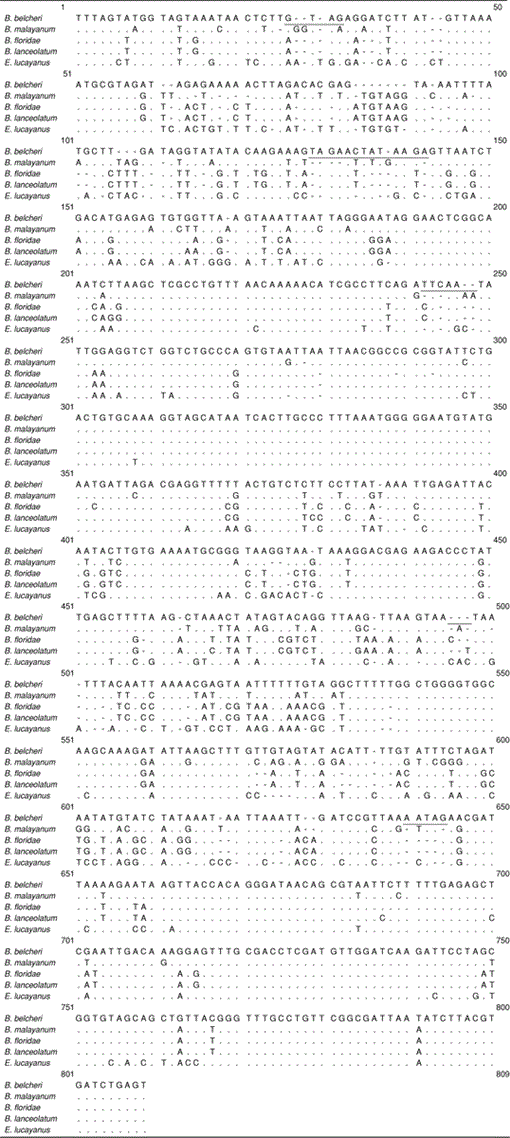

Aligned sequences of 809 bp, including indels, of the 16S rRNA gene for five lancelets. Hyphens and dots indicate a gap and identity to first sequence, respectively. Accession numbers for five sequences of B. belcheri, B. malayanum B. floridae, B. lanceolatum and E. lucayanus are  AB105142,  AB105143,  AF098298,  Y16474 and  AB105144, respectively.
